Dubai 500kg/h Frozen French Fries Production Line Case

Joyshine Machinery completed a 500kg/h frozen French fries production line project in Dubai. The line was designed as a complete turnkey solution for frozen French fries processing, covering the full production process from raw potato feeding to final automatic packaging.

For this project, the customer needed a stable and efficient production line for commercial frozen French fries manufacturing. Based on the customer’s target capacity, product requirements and factory layout, Joyshine provided a customized solution including potato washing, peeling, cutting, blanching, coating, frying, oil removal, air drying, IQF freezing and automatic packaging.

If you are planning a similar potato processing project, you can also learn more about our French Fries Production Line.

Project Overview

This production line has completed installation and commissioning. During the trial run, the equipment operated stably at the designed capacity, and the finished French fries showed consistent size, color and texture.

Customer Requirements

The Dubai customer wanted a complete frozen French fries processing solution instead of purchasing separate single machines. The main requirements included:

• Stable production capacity of around 500kg/h
• Continuous production from fresh potatoes to packaged frozen fries
• Uniform fries size after cutting
• Stable color and texture after blanching and frying
• IQF freezing system suitable for cold chain storage and distribution
• Automatic packaging to improve production efficiency
• Hygienic stainless steel equipment for food factory use

Compared with a simple frying line, a frozen French fries production line requires better coordination between each processing section. Washing, peeling, cutting, blanching, frying, oil removal, cooling, freezing and packaging must be matched properly to ensure stable output and product quality.

Production Process Flow

The complete production process of this Dubai frozen French fries line is:

Hydraulic feeder → Spiral feeder with water → Spiral brush peeling machine → Bucket elevator → First blanching → Manual inspection → Two parallel potato cutters → Vibrating dehydrator → Roller impurity remover → Short-cut remover → Second blanching → Vibrating sieve with spraying system → Continuous fryer → Vibrating oil remover → Air-drying line → IQF freezer → Automatic packaging machine

This process covers the complete workflow from raw potato handling to final frozen fries packing. It helps the customer reduce manual handling, improve product consistency and prepare frozen French fries for commercial distribution.

For more turnkey food processing solutions, visit our Food Processing Solutions page.

Key Equipment Used in the Dubai Frozen French Fries Line

1. Hydraulic Feeder

The hydraulic feeder is used for potato unloading and feeding. It helps feed potatoes smoothly into the production line and ensures stable material supply for the next processing stages.

This equipment reduces manual lifting and improves the continuity of the whole line.

2. Spiral Feeder with Water

The spiral feeder transfers potatoes forward while performing simple soaking and initial washing. It helps remove surface dirt before the potatoes enter the peeling process.

This section is important for improving cleaning efficiency and preparing potatoes for further processing.

3. Spiral Brush Peeling Machine

The spiral brush peeling machine removes potato skins through brush friction and water spraying. It is suitable for potatoes and other root vegetables.

The machine helps peel potatoes efficiently while reducing damage to the raw material.

4. Bucket Elevator

The bucket elevator lifts the washed and peeled potatoes to the next processing section. It keeps the production flow continuous and helps connect equipment with different working heights.

5. First Blanching Machine

The first blanching machine provides heat treatment before cutting. This process helps stabilize potato color and improve texture.

Blanching is an important step in frozen French fries production because it affects the final appearance, taste and quality of the fries.

6. Manual Inspection Table

After the first blanching stage, potatoes pass through a manual inspection table. Operators can remove defective potatoes or unsuitable materials before cutting.

This quality control step helps improve final product consistency and reduces problems in downstream equipment.

7. Two Parallel Potato Cutters

Two potato cutters were arranged in parallel for this 500kg/h production line. This configuration helps meet the required capacity and ensures stable cutting efficiency.

The cutting size can be adjusted according to the customer’s final product requirements. Uniform cutting helps improve frying quality and final product appearance.

You can also view our related Vegetable Cutting Machine for more cutting applications.

8. Vibrating Dehydrator

The vibrating dehydrator removes surface water from the cut potato strips before the next process. Reducing excess water helps improve frying efficiency and reduces oil splashing during frying.

9. Roller Impurity Remover

The roller impurity remover helps remove small stones, debris and other impurities from the potato strips. This protects downstream equipment and improves final product quality.

10. Short-Cut Remover

The short-cut remover is used to remove short or defective fries. This helps keep the final French fries more uniform in length and appearance.

For frozen French fries sold in retail or food service channels, product uniformity is very important.

11. Second Blanching Machine

The second blanching machine further stabilizes the cut fries before coating and frying. It helps improve product texture and supports more consistent frying results.

12. Vibrating Sieve with Spraying System

The vibrating sieve with spraying system applies coating evenly onto the fries. Uniform coating helps improve the crispness, color and texture of the final frozen French fries.

This section is especially useful for customers who require coated frozen fries with better taste and appearance.

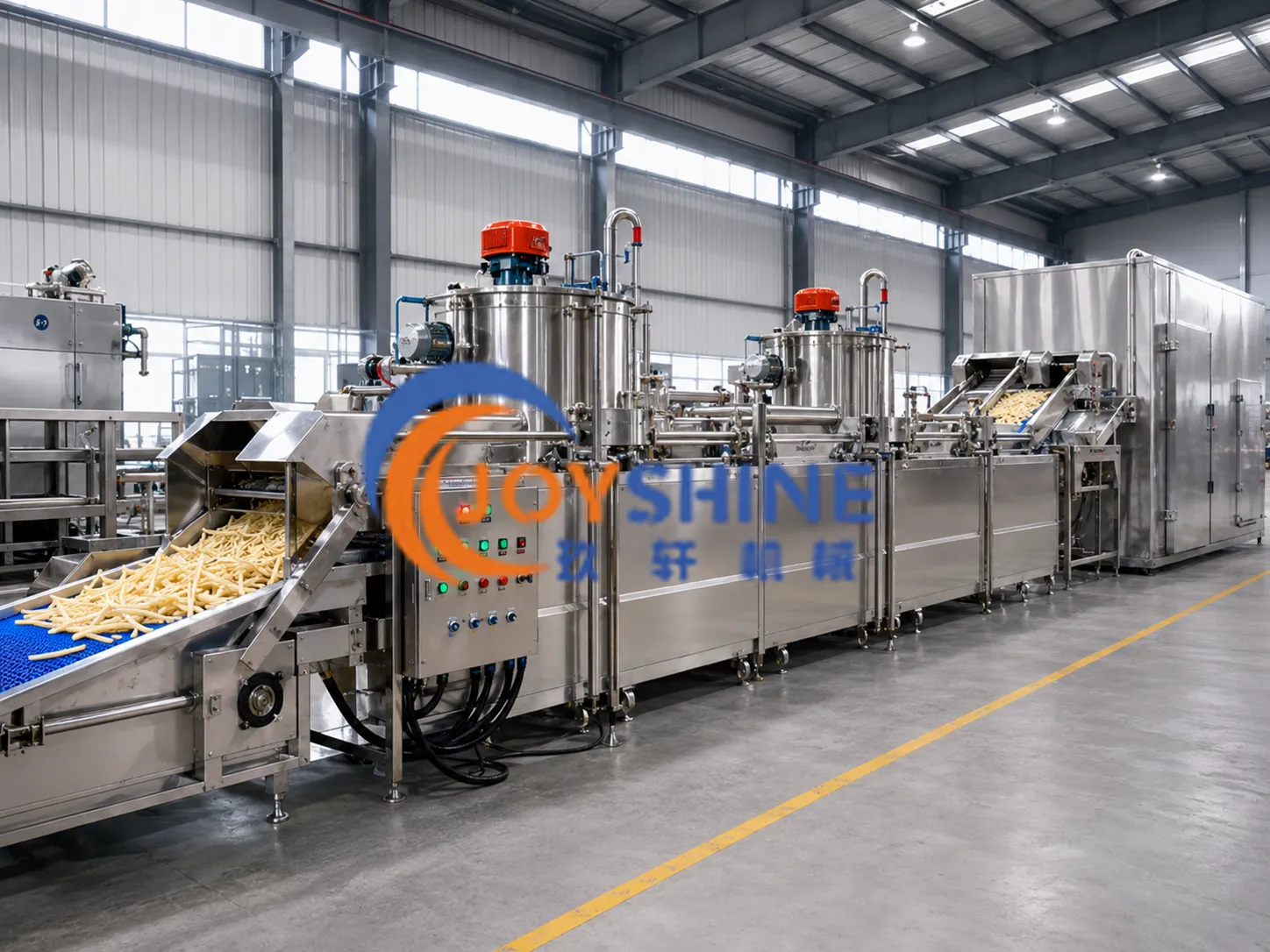

13. Continuous Fryer

The continuous fryer is one of the core machines in the whole line. It provides continuous frying with controlled temperature and frying time.

Stable frying control helps ensure consistent color, texture and taste. For a 500kg/h frozen French fries line, a continuous fryer is more suitable than manual batch frying because it supports higher output and more stable product quality.

Learn more about our Frying Production Line and related frying equipment.

14. Vibrating Oil Remover

After frying, the fries pass through a vibrating oil remover. This machine removes excess surface oil and prepares the fries for air drying and cooling.

Oil removal helps improve product quality and reduces oil residue on the final fries.

15. Air-Drying Line

The air-drying line removes residual surface moisture and oil while cooling the fries before freezing.

This step helps improve the freezing effect and prevents product sticking during IQF freezing.

16. IQF Freezer

The IQF freezer individually quick freezes the French fries. This helps maintain the shape of each fry and prevents the products from sticking together.

For frozen French fries factories, IQF freezing is a key step for cold chain storage, transportation and commercial sales.

You can view more details about our IQF Freezing Line.

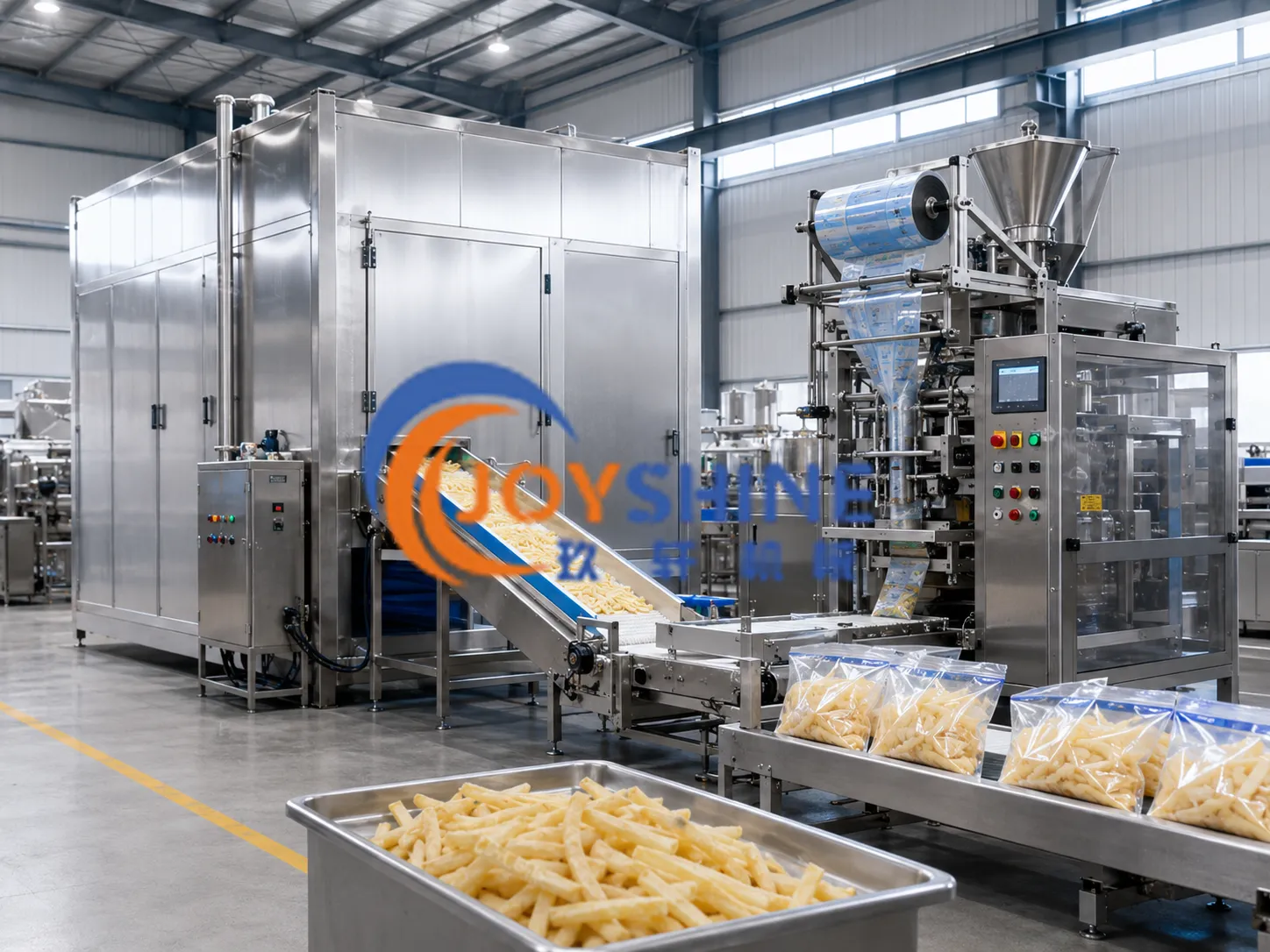

17. Automatic Packaging Machine

The automatic packaging machine completes weighing, filling, sealing and final packing. It helps reduce labor cost and improves packing efficiency.

With automatic packaging, the customer can prepare frozen French fries for storage, shipping and market distribution more efficiently.

Project Result

After installation and commissioning, the Dubai 500kg/h frozen French fries production line completed trial runs successfully.

The complete line operated smoothly at the designed capacity. The finished French fries had consistent shape, stable color and good texture. The customer was able to process fresh potatoes into packaged frozen French fries through one continuous production system.

This project helped the customer:

• Build a complete frozen French fries processing workflow
• Achieve stable production capacity of around 500kg/h
• Improve product consistency through controlled cutting, blanching, coating and frying
• Reduce manual handling through continuous equipment connection
• Improve product quality with impurity removal and short-cut removal systems
• Prepare frozen French fries for cold chain storage and distribution
• Improve production efficiency with IQF freezing and automatic packaging

You can view more customer cases on our Food Processing Equipment Projects page.

Why Choose a Turnkey Frozen French Fries Production Line?

A frozen French fries factory is not only about one fryer or one freezer. The whole processing system must be designed according to raw material condition, target capacity, product size, factory layout and packaging requirements.

A complete turnkey line can help match:

• Potato feeding and washing capacity
• Peeling and cutting efficiency
• Fries size and product standard
• Blanching temperature and time
• Coating system requirements
• Frying temperature and belt speed
• Oil removal and air-drying time
• IQF freezing capacity
• Packaging speed and bag size
• Factory layout and installation space

Joyshine can customize the production line according to your production capacity, automation level, final product type and available factory space.
