РусскийGrape Vibration Separator
High-frequency grape vibration separator for sorting fresh grapes and removing stems, leaves and impurities. Food-grade SUS 304 stainless steel, 1-10 tons/h capacity.
Quick Quote
Product Introduction

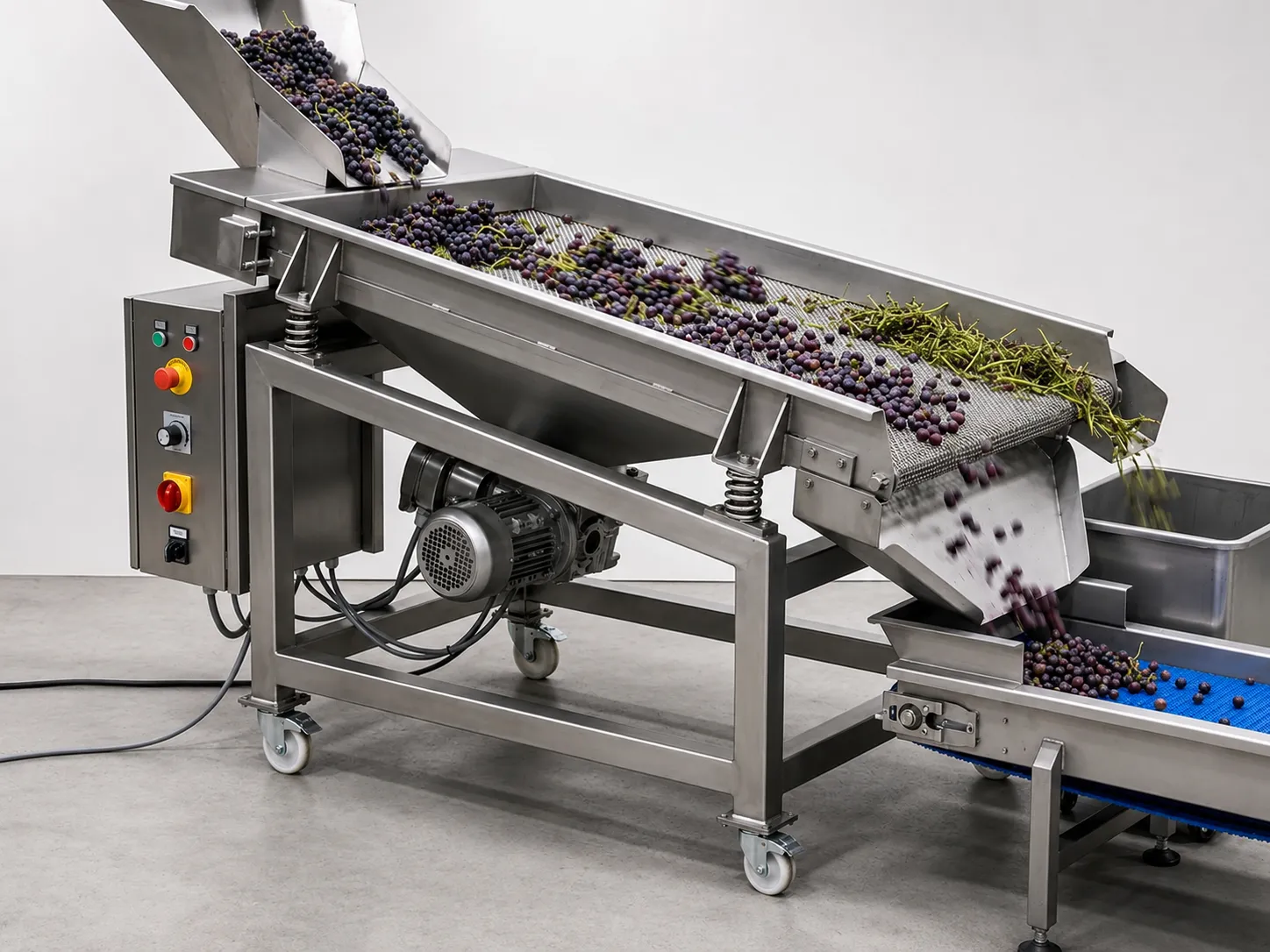

The grape vibration separator is a specialized sorting equipment designed for grape processing lines. It uses high-frequency vibration to transmit grapes along a perforated screen while simultaneously separating unqualified fruits, stems, leaves and other impurities. This ensures only fresh, mature and intact grapes enter the subsequent processing stages.
The machine features adjustable vibration amplitude and frequency to adapt to different grape varieties, sizes and moisture conditions. The multi-layer screen design allows分级 sorting at different levels. The inclined vibration transmission ensures smooth grape movement without bruising or damage.
Constructed entirely from food-grade SUS 304 stainless steel, the vibration separator meets international food hygiene standards. The sealed design prevents dust and impurities from entering the processing environment. Easy-to-remove screens allow quick cleaning and maintenance between batches.
Detailed Description of Continuous Fryer
High-Frequency Vibration
Powerful vibration motor generates 960-1450 rpm adjustable frequency, ensuring effective separation of impurities while gentle handling of grapes.
Adjustable Parameters
Vibration amplitude, screen angle and transmission speed are all adjustable to optimize sorting performance for different grape varieties.
Multi-Layer Screen
Optional multi-layer screen design enables分级 sorting by size, improving processing efficiency and product uniformity.
Food-Grade Construction
All contact parts are SUS 304 stainless steel, meeting food safety requirements and ensuring long service life.
Easy Cleaning
Quick-release screen panels and open design allow thorough cleaning between batches, preventing cross-contamination.
Energy Efficient
Optimized vibration mechanism and motor design minimize power consumption while maintaining high sorting efficiency.
Low Noise Operation
Vibration isolation mounts and sound-dampening design keep operating noise below 75 dB.
Integration Ready
Designed with standard inlet/outlet dimensions for seamless integration into any grape processing line.
Key Advantages
High Sorting Accuracy
Effectively removes >95% of stems, leaves and damaged grapes, ensuring consistent raw material quality.
High Throughput
Processes up to 10 tons/hour, keeping pace with large-scale production lines without bottleneck.
Gentle on Product
Vibration transmission is gentle and does not bruise or damage delicate grape skins.
Low Maintenance
Simple mechanical design with durable vibration motor requires minimal maintenance.
Hygienic Design
Smooth stainless steel surfaces and accessible design allow thorough sanitation.
Flexible Configuration
Single or multi-layer screens, various mesh sizes available for different sorting requirements.
Technical Parameters
| Parameter | JS-GVS-1T | JS-GVS-5T | JS-GVS-10T |
|---|---|---|---|
| Capacity | 1 ton/h | 5 tons/h | 10 tons/h |
| Vibration Frequency | 960-1450 rpm | 960-1450 rpm | 960-1450 rpm |
| Motor Power | 0.37 kW | 0.75 kW | 1.5 kW |
| Screen Area | 0.5 m² | 1.2 m² | 2.0 m² |
| Screen Layers | 1-2 | 1-3 | 1-3 |
| Screen Mesh | Customizable | Customizable | Customizable |
| Material | SUS 304 | SUS 304 | SUS 304 |
| Dimension (mm) | 1500×600×900 | 2200×900×1100 | 3000×1200×1300 |
| Weight | 120 kg | 280 kg | 450 kg |
Dimensions and specifications can be customized. Power supply can be adapted to local standards. Contact us for a tailored solution.
