РусскийGrape Destemmer
Joyshine grape destemmer. Specialized stem removing equipment with adjustable eccentric blade. SUS 304 stainless steel, capacity 1-50 tons/day. Get a quote today!
Quick Quote
Product Introduction

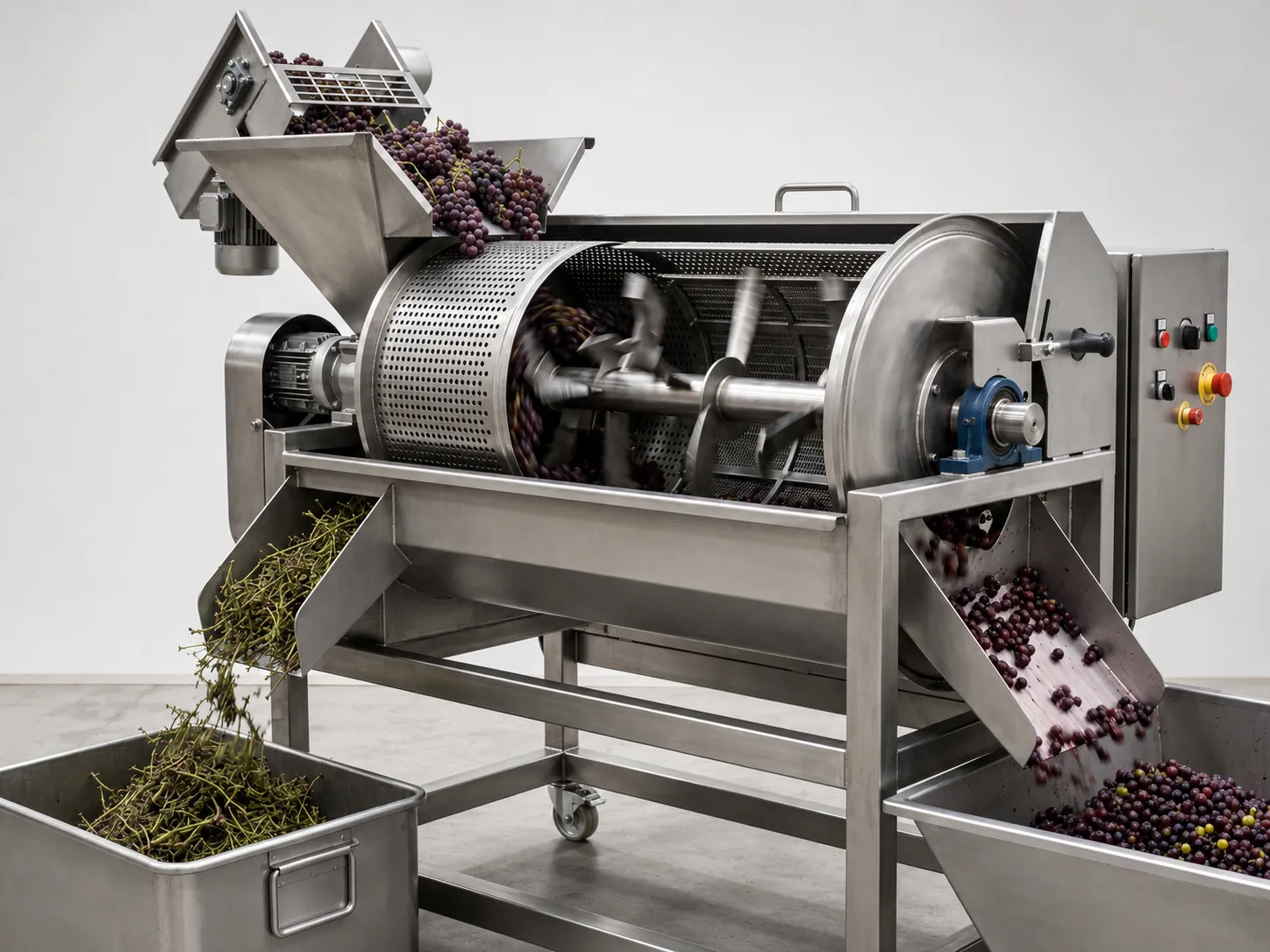

The grape destemmer is specialized equipment designed to remove stems from grapes while protecting the integrity of grape grains. Grape stems account for 3-8% of grape weight and are mainly composed of lignin with 1-2.5% tannin, 0.5-1.5% acid and bitter compounds. If not removed, stems will contaminate the juice quality with bitter and astringent flavors.
The machine adopts an eccentric and adjustable destem blade design. The rotating speed can be adjusted to adapt to different grape sizes and varieties. The crushing roller is made of non-toxic, high-elastic rubber material that effectively removes stems without damaging the grape grains. The pore size of the drum sieve can be customized according to grape size for optimal destemming performance.
After destemming, a single-screw pump transmits the grapes to the next processing stage (crushing). The sieve is made of nylon material resistant to acid, alkali and corrosion. For production capacity larger than 5 tons/hour, the machine is equipped with a wheeled separator for improved efficiency.
Detailed Description of Continuous Fryer
Eccentric Destem Blade
Adjustable eccentric blade design adapts to different grape sizes while maintaining high destemming rate and grain integrity.
Variable Speed Control
Adjustable rotating speed from 5-25 rpm allows optimization for different grape varieties and maturity levels.
Customizable Drum Sieve
Nylon drum sieve with customizable pore size ensures effective stem removal while retaining grape grains.
Gentle Rubber Roller
Non-toxic, high-elastic rubber crushing roller protects grape grain integrity during the destemming process.
Integrated Screw Pump
Built-in single-screw pump automatically transmits destemmed grapes to the next processing stage.
Corrosion-Resistant Sieve
Nylon sieve material is resistant to acid, alkali and corrosion, ensuring long service life in juice processing environments.
Wheeled Separator
Models above 5t/h capacity include wheeled separator for enhanced stem and grape separation efficiency.
Line Integration
Standardized outlet design allows direct connection to grape crusher or other downstream equipment.
Key Advantages
High Destem Rate
Achieves ≥98% destemming rate, effectively removing stems while preserving grape grain integrity.
Protects Grape Quality
Gentle rubber roller and adjustable blade prevent crushing or damaging grape skins, maintaining juice quality.
Versatile Application
Suitable for various grape varieties including wine grapes, table grapes and juice grapes of different sizes.
High Efficiency
Continuous processing capability of up to 50 tons/day meets industrial production requirements.
Food-Safe Materials
All food contact parts are food-grade materials meeting international food safety standards.
Easy Maintenance
Quick-access design allows easy screen replacement and roller inspection.
Technical Parameters
| Parameter | JS-GD-1T | JS-GD-5T | JS-GD-10T | JS-GD-20T |
|---|---|---|---|---|
| Capacity | 1 ton/day | 5 tons/day | 10 tons/day | 20 tons/day |
| Destem Rate | ≥98% | ≥98% | ≥98% | ≥98% |
| Blade Speed | 5-25 rpm | 5-25 rpm | 5-25 rpm | 5-25 rpm |
| Motor Power | 1.5 kW | 3 kW | 5.5 kW | 7.5 kW |
| Screw Pump | Included | Included | Included | Included |
| Drum Sieve | Nylon, customizable | Nylon, customizable | Nylon, customizable | Nylon, customizable |
| Material | SUS 304 | SUS 304 | SUS 304 | SUS 304 |
| Dimension (mm) | 1200×600×1100 | 1800×800×1300 | 2200×1000×1500 | 2800×1200×1700 |
| Weight | 180 kg | 350 kg | 550 kg | 800 kg |
Dimensions and specifications can be customized. Power supply can be adapted to local standards. Contact us for a tailored solution.
