For frozen food manufacturers, freezing is not only a preservation step. It directly affects product quality, shelf life, appearance, texture, and final market value.

An IQF freezing line is widely used in industrial food processing plants because it can freeze individual pieces of food quickly and separately. Compared with traditional bulk freezing, IQF freezing helps reduce product sticking, maintain product shape, and improve packaging convenience.

Whether you process vegetables, fruits, seafood, meat products, prepared foods, or frozen snacks, choosing the right IQF freezing line is an important investment decision.

This guide explains the key factors you should consider before purchasing an industrial IQF freezing line.

1. What Is an IQF Freezing Line?

IQF means Individual Quick Freezing.

An IQF freezing line is a continuous freezing system designed to freeze food products piece by piece. Products enter the freezer through a conveyor belt, pass through a low-temperature freezing tunnel, and then exit as individually frozen products ready for packaging or cold storage.

A typical IQF freezing line is often connected with upstream processing equipment such as a vegetable and fruit washing processing line, blanching machine, cooling system, dewatering machine, or frying line.

The main goal is to freeze the product quickly while keeping its original shape, color, texture, and quality.

For example, diced vegetables, strawberries, blueberries, shrimp, dumplings, chicken nuggets, French fries, and potato wedges can all be processed with IQF freezing technology.

2. Why Food Factories Use IQF Freezing

Many food factories choose IQF freezing because it supports continuous production and helps maintain consistent product quality.

The main advantages include:

  • Fast freezing speed
  • Reduced product sticking
  • Better product appearance
  • Improved texture and taste retention
  • Easier weighing and packaging
  • Suitable for mixed or small-piece products
  • Better storage and distribution stability
  • Continuous operation for industrial production

For products like peas, corn, berries, shrimp, diced vegetables, dumplings, and French fries, IQF freezing is especially useful because each piece needs to remain separate after freezing.

If products freeze together in large blocks, later weighing, packing, cooking, and retail use become more difficult.

3. Choose Capacity According to Your Production Plan

Capacity is one of the first factors to confirm before choosing an IQF freezing line.

Common industrial capacity ranges include:

  • 100–300 kg/h: suitable for small frozen food factories or pilot production
  • 500–1000 kg/h: suitable for medium-scale frozen food processing plants
  • 1500–2000 kg/h: suitable for large factories and continuous production
  • Customized capacity: suitable for special product types or factory layouts

When choosing capacity, do not only consider your current output. You should also consider future market growth, daily working hours, raw material supply, labor arrangement, and cold storage capacity.

For example, if your current production demand is 500 kg/h but your market is growing quickly, choosing a slightly higher-capacity line may reduce the need for future equipment replacement.

If you are planning a complete frozen food factory, Joyshine can also provide customized turnkey food processing solutions according to your product type, factory space, and required capacity.

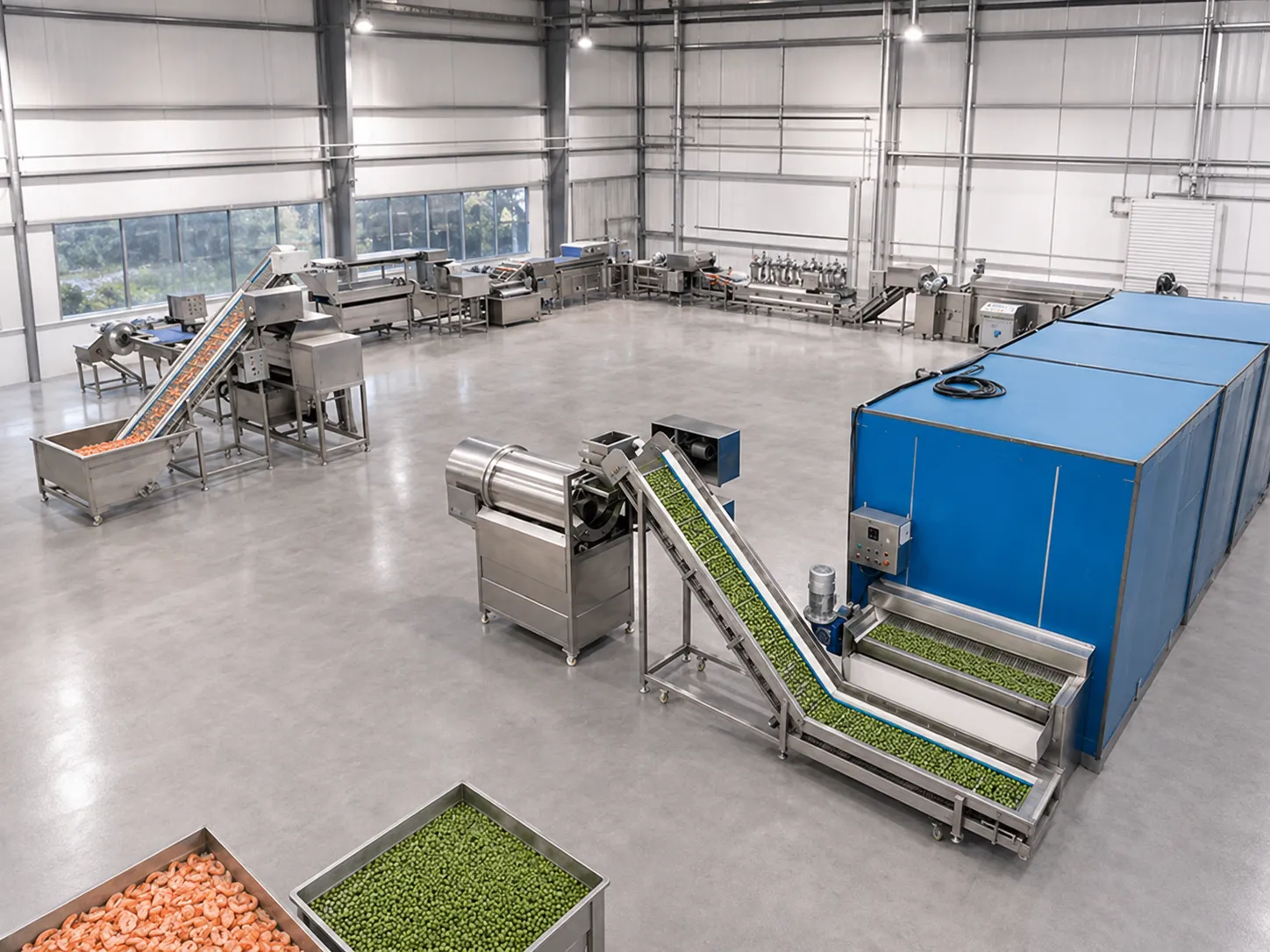

IQF freezing line inlet conveyor for peas shrimp and frozen food products

4. Freezing Temperature and Product Quality

Freezing temperature is a key factor in IQF freezing performance.

For industrial freezing lines, the freezing tunnel usually needs to reach very low temperatures, commonly around -35°C to -42°C, depending on the product, thickness, moisture content, and output requirement.

Different products require different freezing strategies:

Product Type Freezing Requirement
Vegetables Fast freezing after blanching and cooling
Fruits Gentle handling to protect shape and surface
Seafood Rapid freezing to maintain freshness and texture
Meat products Stable low-temperature freezing for food safety
Prepared foods Uniform freezing for mixed ingredients
French fries Fast freezing after frying and cooling

For frozen French fries production, IQF freezing is usually placed after frying and cooling. You can also learn more about the complete upstream process from our French Fries Production Line page.

The colder the freezing environment, the faster the product temperature can drop. However, faster is not always the only goal. The freezing line should also control airflow, belt speed, product thickness, and residence time to achieve stable final quality.

5. Belt Type and Conveyor Speed

The conveyor belt is an important part of an IQF freezing line.

For continuous food freezing, stainless steel mesh belts are commonly used because they are durable, hygienic, and allow cold air to pass through the product layer.

When choosing the belt system, consider:

  • Belt width
  • Belt material
  • Mesh opening size
  • Product loading thickness
  • Conveyor speed adjustment
  • Cleaning convenience
  • Product transfer stability
  • Anti-sticking design

Adjustable belt speed is very important because different products need different freezing times.

For example, small diced vegetables may freeze faster than thick meat products. Strawberries, shrimp, dumplings, and French fries may all require different residence times inside the freezer.

A frequency-controlled conveyor allows the operator to adjust freezing time according to the product type and production target.

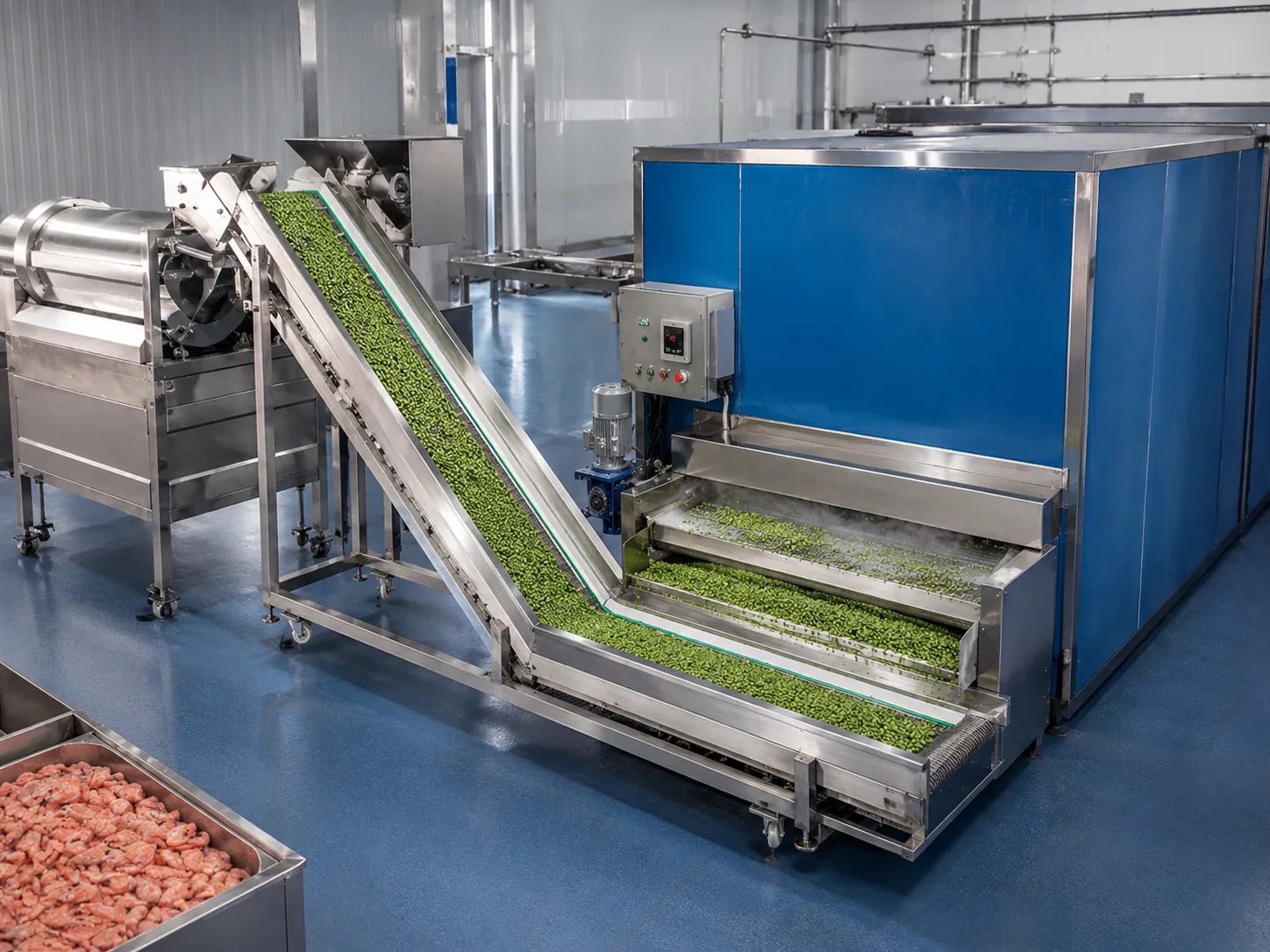

IQF freezing line output section for individually frozen peas

6. Refrigeration System: The Core of the IQF Freezer

The refrigeration system directly affects freezing efficiency, energy consumption, and long-term operation stability.

When comparing IQF freezing line suppliers, pay attention to:

  • Compressor brand
  • Refrigeration capacity
  • Refrigerant type
  • Evaporator design
  • Airflow structure
  • Defrost system
  • Temperature control accuracy
  • Energy consumption
  • Maintenance convenience

A stable refrigeration system can help the freezing tunnel maintain low temperature during continuous production.

If the refrigeration system is not strong enough, the product may not freeze completely, especially when the production load increases. This can lead to quality problems, product sticking, and higher rejection rates.

7. Product Layer Thickness and Feeding Uniformity

Even a good IQF freezer cannot perform well if the product feeding is uneven.

Before entering the freezing tunnel, products should be spread evenly on the conveyor belt. If the product layer is too thick, some products may not freeze completely. If the feeding is too uneven, freezing quality will vary from batch to batch.

For better freezing performance, factories should consider adding:

  • Vibrating feeder
  • Spreading conveyor
  • Manual inspection conveyor
  • Dewatering machine
  • Cooling conveyor
  • Uniform feeding system

Many of these upstream and auxiliary machines can be matched from single machines for food processing according to the product type and factory layout.

8. Factory Layout and Production Flow

An IQF freezing line is usually part of a complete food processing system.

Before purchasing, you should check how the freezing line connects with upstream and downstream equipment.

A typical frozen food production flow may include:

Raw Material → Washing → Cutting → Blanching → Cooling → Dewatering → IQF Freezing → Packaging → Cold Storage

For frozen French fries, the process may include:

Potato Washing → Peeling → Cutting → Blanching → Dewatering → Frying → Cooling → IQF Freezing → Packaging

In this type of line, the industrial continuous fryer is usually installed before the cooling and freezing sections.

For fruits such as strawberries or blueberries, the process may include:

Sorting → Washing → Air Drying → Inspection → IQF Freezing → Packaging

For fruit and vegetable products, the upstream washing stage can be connected with a Vegetable & Fruit Washing Processing Line before entering the IQF freezer.

The equipment layout should consider:

  • Workshop length and width
  • Drainage system
  • Power supply
  • Refrigeration room location
  • Cold storage distance
  • Packaging area
  • Worker operation space
  • Cleaning and maintenance access
  • Product transfer direction

A good layout can reduce unnecessary material handling, improve hygiene, and make daily production more efficient.

9. Cleaning, Hygiene, and Food Safety

Frozen food equipment must be easy to clean and suitable for hygienic operation.

When selecting an IQF freezing line, check whether the machine structure supports:

  • Food-grade stainless steel construction
  • Easy-open inspection doors
  • Accessible belt cleaning
  • Smooth internal surfaces
  • Drainage design
  • Anti-corrosion structure
  • Cleanable conveyor and product contact parts
  • Safe electrical control system

In frozen food factories, cleaning is not only about appearance. It affects food safety, equipment life, and compliance with customer requirements.

For export-oriented factories, hygienic design is especially important.

10. Which Products Are Suitable for IQF Freezing?

Industrial IQF freezing lines are widely used for many food categories.

Vegetables

  • Green beans
  • Peas
  • Corn
  • Broccoli
  • Spinach
  • Peppers
  • Carrots
  • Mixed vegetables

Fruits

  • Strawberries
  • Blueberries
  • Mango chunks
  • Pineapple chunks
  • Banana slices
  • Fruit cubes

Seafood

  • Shrimp
  • Fish fillets
  • Squid
  • Scallops
  • Seafood mixes

Meat and Poultry

  • Chicken nuggets
  • Meatballs
  • Beef patties
  • Chicken strips
  • Prepared meat products

Prepared Foods

  • Dumplings
  • Spring rolls
  • Pasta
  • Rice products
  • Ready meals

Frozen Snacks

  • French fries
  • Potato wedges
  • Onion rings
  • Fried snacks
  • Coated products

If your factory also produces potato-based snack products, you may also be interested in Joyshine’s Potato Chips Production Line and French Fries Production Line.

Different products require different belt speed, air temperature, feeding thickness, and freezing time. That is why customized design is important.

11. What Information Should You Provide Before Requesting a Quote?

To get an accurate IQF freezing line quotation, you should prepare the following information:

  • Product type
  • Product size and shape
  • Required capacity
  • Incoming product temperature
  • Required final product temperature
  • Moisture content
  • Whether the product is blanched, fried, or pre-cooled
  • Factory layout drawing
  • Local voltage and frequency
  • Refrigeration preference
  • Packaging method
  • Cold storage plan
  • Destination country

With this information, engineers can recommend the correct freezing tunnel size, belt width, refrigeration capacity, and layout design.

If you only ask for the price of an IQF freezer without providing product and capacity details, the quotation can only be a rough estimate.

12. How to Choose a Reliable IQF Freezing Line Supplier

A reliable supplier should not only provide the freezer itself. They should help you design a complete production solution.

When choosing a supplier, consider whether they can provide:

  • Product freezing process analysis
  • Capacity planning
  • Customized freezer design
  • Factory layout support
  • Refrigeration system matching
  • Stainless steel food-grade construction
  • PLC control system
  • Installation guidance
  • Operator training
  • Spare parts supply
  • After-sales technical support

You can also view more real installation experience from Joyshine’s food processing equipment projects page.

For international buyers, after-sales support and installation guidance are especially important.

An IQF freezing line is a long-term investment. Choosing the right supplier can reduce production risk and improve factory efficiency.

Conclusion

Choosing the right IQF freezing line depends on product type, capacity, freezing temperature, belt width, conveyor speed, refrigeration system, factory layout, hygiene requirements, and future expansion plan.

A well-designed IQF Freezing Line can help food factories:

  • Improve freezing efficiency
  • Maintain product shape and texture
  • Reduce product sticking
  • Support continuous production
  • Improve packaging convenience
  • Extend product shelf life
  • Build a more stable frozen food processing system

Joyshine Machinery provides customized IQF freezing line solutions for vegetables, fruits, seafood, meat products, prepared foods, and frozen snacks.

If you are planning to build or upgrade a frozen food processing plant, tell us your product type, required capacity, factory size, and freezing requirements. Our engineers will help you design a suitable IQF freezing solution.

Request an IQF Freezing Line Quotation
