Delicate Fruit Processing: Strawberry Washing and Air Drying Line Guide

When processing root vegetables like potatoes or carrots, the priority is aggressive soil removal using heavy-duty abrasion. But when dealing with delicate fruits—such as strawberries, blueberries, cherry tomatoes, and grapes—the entire engineering philosophy must change. Strawberries have an incredibly soft surface and a very short shelf life. Even minor bruising or friction during the washing process can ruin the fruit's appearance, leading to rapid spoilage and a severe drop in commercial value.

A recent Guatemala 500 kg/h strawberry washing and drying line project perfectly illustrates the necessity of "gentle handling" in fruit processing. The customer needed to thoroughly clean fresh strawberries of dust, soil, and agricultural residues without causing any mechanical damage.

In this guide, we will break down the essential components and considerations for building an industrial delicate fruit processing line.

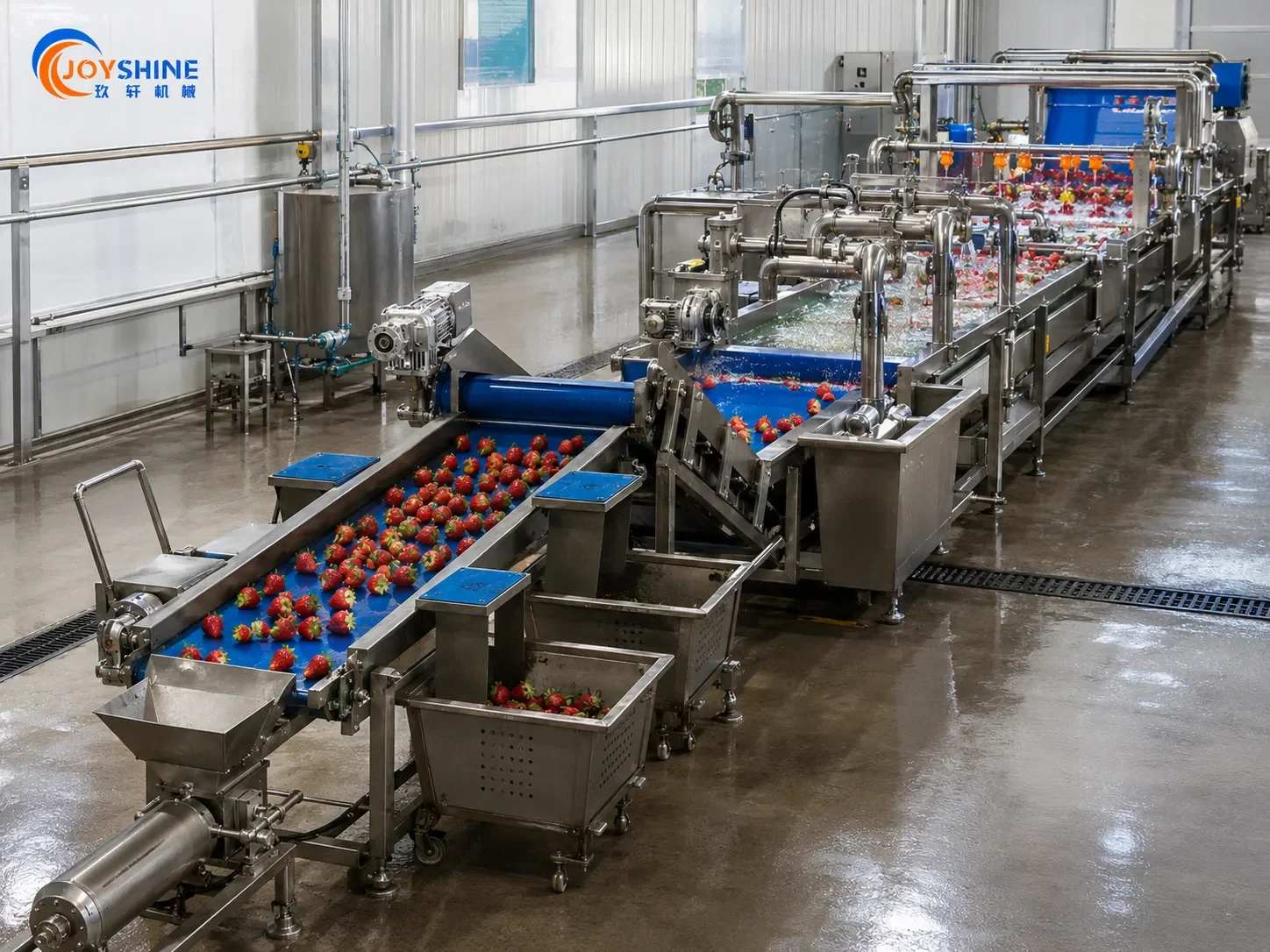

A customized strawberry washing line focuses on gentle handling to protect the fruit's delicate surface while effectively removing impurities.

1. The Core Challenge: Cleaning Without Bruising

The primary challenge in berry and delicate fruit processing is finding the exact balance between cleaning efficacy and fruit protection.

If the water pressure is too low, the strawberries remain dirty. If the mechanical action is too aggressive—such as using hard brush rollers or centrifugal spin dryers—the strawberries will be instantly bruised, leaking juice and losing their shape.

To overcome this, a modern strawberry processing line replaces abrasive mechanics with fluid dynamics.

2. Bubble Washing: The Gold Standard for Berries

The foundation of any delicate fruit line is a high-quality fruit and vegetable washing machine that relies strictly on air bubble agitation.

How Bubble Washing Works

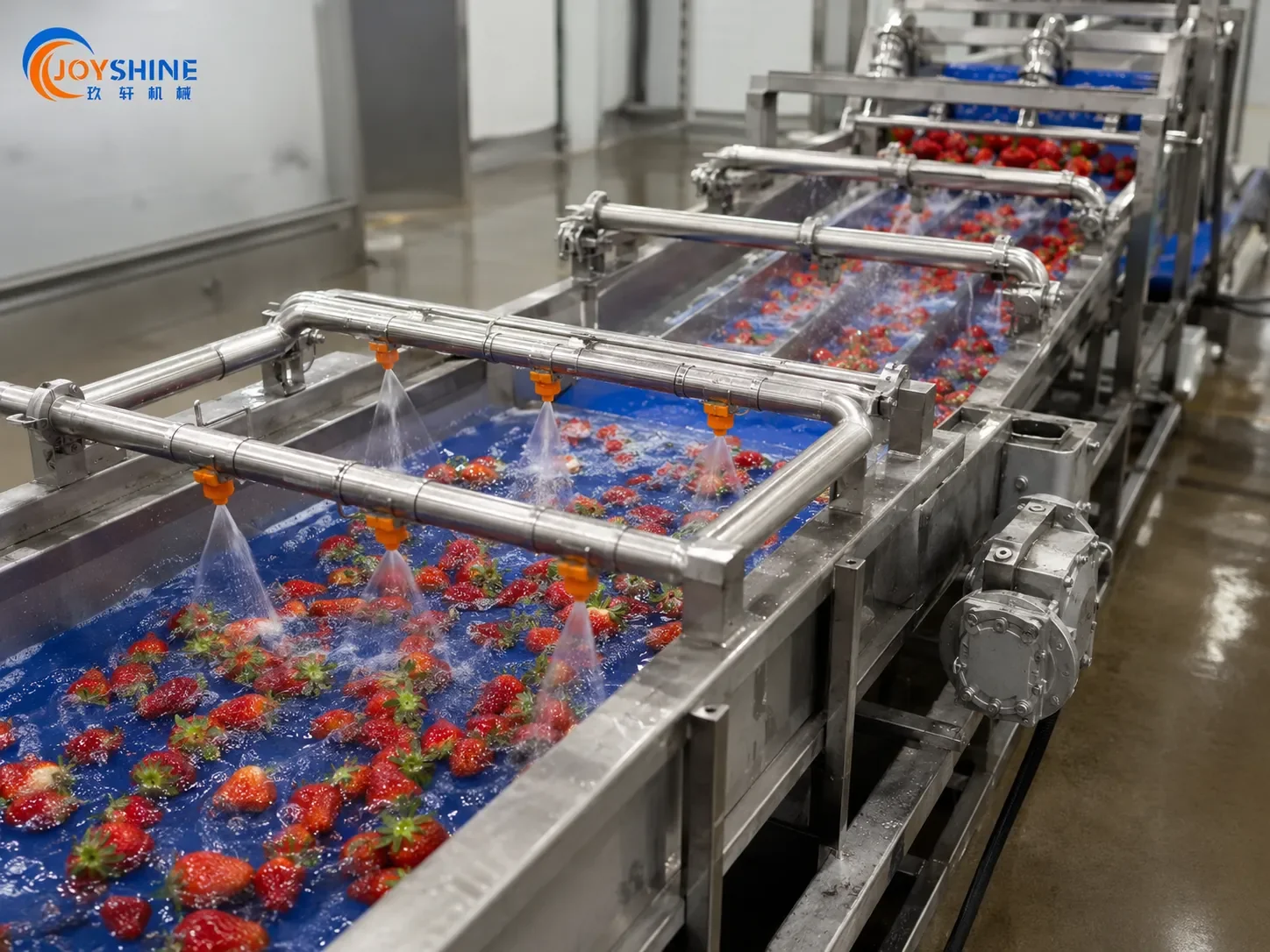

Instead of using mechanical paddles or brushes to scrub the fruit, a high-power air blower generates thousands of bubbles at the bottom of the water tank. As these bubbles rise and burst, they create a turbulent, rolling water flow. This rolling action gently tumbles the strawberries, rubbing them against the water itself rather than metal or hard plastic.

The fluid motion separates overlapping berries and releases trapped soil, sand, and tiny insects, which then sink through a mesh screen to the bottom of the tank, preventing them from re-contaminating the fruit.

High-Pressure Spray Rinsing

As the strawberries exit the bubble tank via a specialized gentle-incline mesh belt, they pass under a set of top-mounted spray nozzles. These deliver a final rinse of clean, fresh water to wash away any remaining loosened debris before the drying stage.

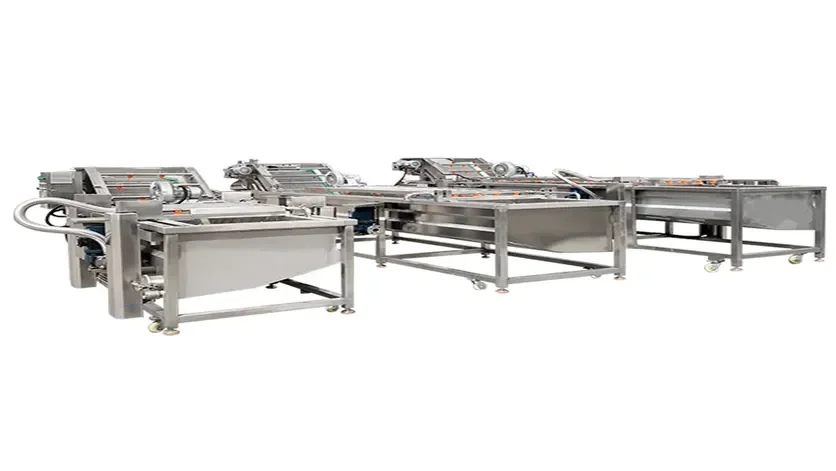

Bubble washing utilizes fluid dynamics rather than mechanical scrubbing, making it the safest method for cleaning strawberries.

3. Water Removal: Why Air Knives Trump Spin Dryers

After washing, surface water must be removed quickly to prevent the strawberries from rotting during transport or freezing (if connected to an IQF line).

For robust products like cabbage or sliced carrots, centrifugal spin dryers are highly effective. However, spinning strawberries in a centrifuge would crush them under their own weight and the centrifugal force.

The Self-Rotating Roller Air Drying System

The only safe way to dry delicate fruits is by using an industrial air drying machine.

Instead of spinning the fruit, the strawberries are conveyed under multiple rows of high-pressure air knives. These air curtains physically blow the water droplets off the surface of the fruit. To ensure that all sides of the strawberry are dried, Joyshine designs the conveyor using self-rotating rollers rather than a flat belt. As the rollers slowly turn, the strawberries gently rotate, exposing every side to the powerful air blast without any crushing force.

Air drying machines use high-pressure blowers and air knives to strip water from the fruit's surface without physical contact.

4. Factory Layout and Smooth Transitions

When dealing with delicate fruits, the transition points between machines are just as critical as the machines themselves.

If strawberries drop from a high washing conveyor onto a low drying belt, the impact will cause internal bruising. An optimized factory layout engineered by Joyshine ensures that the drop heights between the washing tank, the air dryer, and the final manual inspection conveyor are minimized to practically zero.

By designing smooth, continuous transitions, the production line protects the physical integrity of the strawberries from the moment they are loaded to the moment they are packed.

A well-planned layout minimizes drop heights and ensures smooth transitions between washing, drying, and inspection stages.

Frequently Asked Questions

Can this line process other fruits besides strawberries?

Yes. A bubble washing and air drying line is highly versatile. By adjusting the air blower intensity and the conveyor belt speed, the exact same line can be used to process blueberries, cherry tomatoes, grapes, plums, and delicate leafy greens.

Does the air drying machine use hot or cold air?

For fresh strawberries, standard room-temperature air is used to prevent heat damage to the fruit's surface. However, the air drying machine can be equipped with an optional warm air system (up to 60°C) if you are processing less temperature-sensitive products.

How do you sanitize the strawberries during washing?

The bubble washing machine can be integrated with an optional ozone generator. Ozone gas is dissolved into the washing water, acting as a powerful oxidizer that kills surface bacteria, viruses, and degrades remaining pesticide residues without leaving any chemical taste.

How fast can a strawberry washing line operate?

Lines can be customized to match your facility's needs. The Guatemala project was designed for 500 kg/h, but Joyshine can scale the equipment width and length to accommodate capacities ranging from 200 kg/h up to 3,000 kg/h.

Build Your Delicate Fruit Processing Line

Processing delicate fruits like strawberries requires precision engineering, prioritizing product protection above all else. From custom bubble washing tanks to gentle self-rotating air drying conveyors, Joyshine Machinery provides complete, turnkey solutions designed to elevate your product quality and extend its shelf life.

Whether you operate a fresh-cut fruit facility, a central kitchen, or an agricultural processing plant, our engineers will design a customized layout that fits your capacity and space constraints perfectly.

Contact Joyshine today to request a tailored delicate fruit processing solution.
