РусскийWhether you are preparing lettuce for a fresh-cut salad mix or washing carrots before IQF freezing, removing surface water is a critical step in industrial food processing. Excess moisture shortens shelf life, causes severe clumping during freezing, and introduces dangerous splatter in deep fryers.
However, gravity draining alone is far too slow for commercial production. To keep up with line capacities of 100 kg/h to 5,000 kg/h, processing plants rely on two main technologies: Centrifugal Dewatering and Air Blowing Drying.
In this guide, we compare these two systems—how they work, their ideal applications, and how to choose the right surface water removal equipment for your facility.
1. Centrifugal Vegetable Dewatering Machines
Centrifugal spin dryers use the physical force of high-speed rotation to forcefully separate water from the vegetable surface.
A robust centrifugal dewatering machine designed with SUS 304 stainless steel and variable speed control.
How It Works
Washed vegetables are loaded into a perforated cylindrical basket. As the basket rapidly accelerates to speeds up to 960 rpm, centrifugal force throws the surface water outward through the holes, while the product remains safely inside. After a short 1-10 minute cycle, an electromagnetic brake stops the basket, and the machine tilts to discharge the dried product.
The Advantages
- Highly Effective: The aggressive spinning action achieves a dewatering rate of ≥95%, pulling moisture out from crevices that air might miss.
- Space Efficient: Vertical centrifugal machines occupy very little floor space compared to long drying tunnels.
- Adjustable Intensity: Modern vegetable dewatering machines feature frequency inverters, allowing you to lower the speed (e.g., 300-500 rpm) for delicate items or maximize it (800-960 rpm) for hardy vegetables.
Best Used For
Centrifugal dewatering is the absolute best choice for leafy greens (spinach, cabbage, lettuce). It is also highly effective for sliced, diced, or shredded root vegetables (like cut carrots or potatoes) that trap water easily.
2. Industrial Air Drying Machines
Instead of spinning the product, an air drying machine moves the product along a continuous mesh belt while blasting it with high-pressure air.

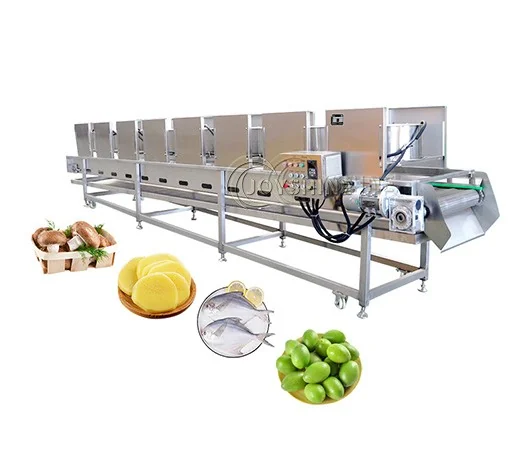

An air drying tunnel featuring multi-stage air knives positioned above and below the conveyor belt.
How It Works
As washed items travel through the drying tunnel on a stainless steel or food-grade plastic belt, multiple sets of upper and lower air knives strip away the water droplets. Industrial blowers generate powerful air curtains, and an integrated pan collects the runoff. The drying time (typically 2-10 minutes) is controlled by the belt speed.
The Advantages
- Continuous Production: Air dryers integrate seamlessly into continuous processing lines, eliminating the batch-loading bottlenecks associated with spin dryers.
- Zero Mechanical Damage: Because it relies entirely on non-contact airflow, there is no crushing, bruising, or friction.
- Heated Air Options: For products with high moisture content, air drying machines can be equipped with a warm air option (up to 60°C) to accelerate evaporation.
Best Used For
Air drying is the preferred method for delicate fruits (strawberries, berries, grapes, tomatoes) that would be destroyed in a centrifuge. It is also the standard choice for packaged items (e.g., removing water from vacuum pouches after pasteurization cooling).

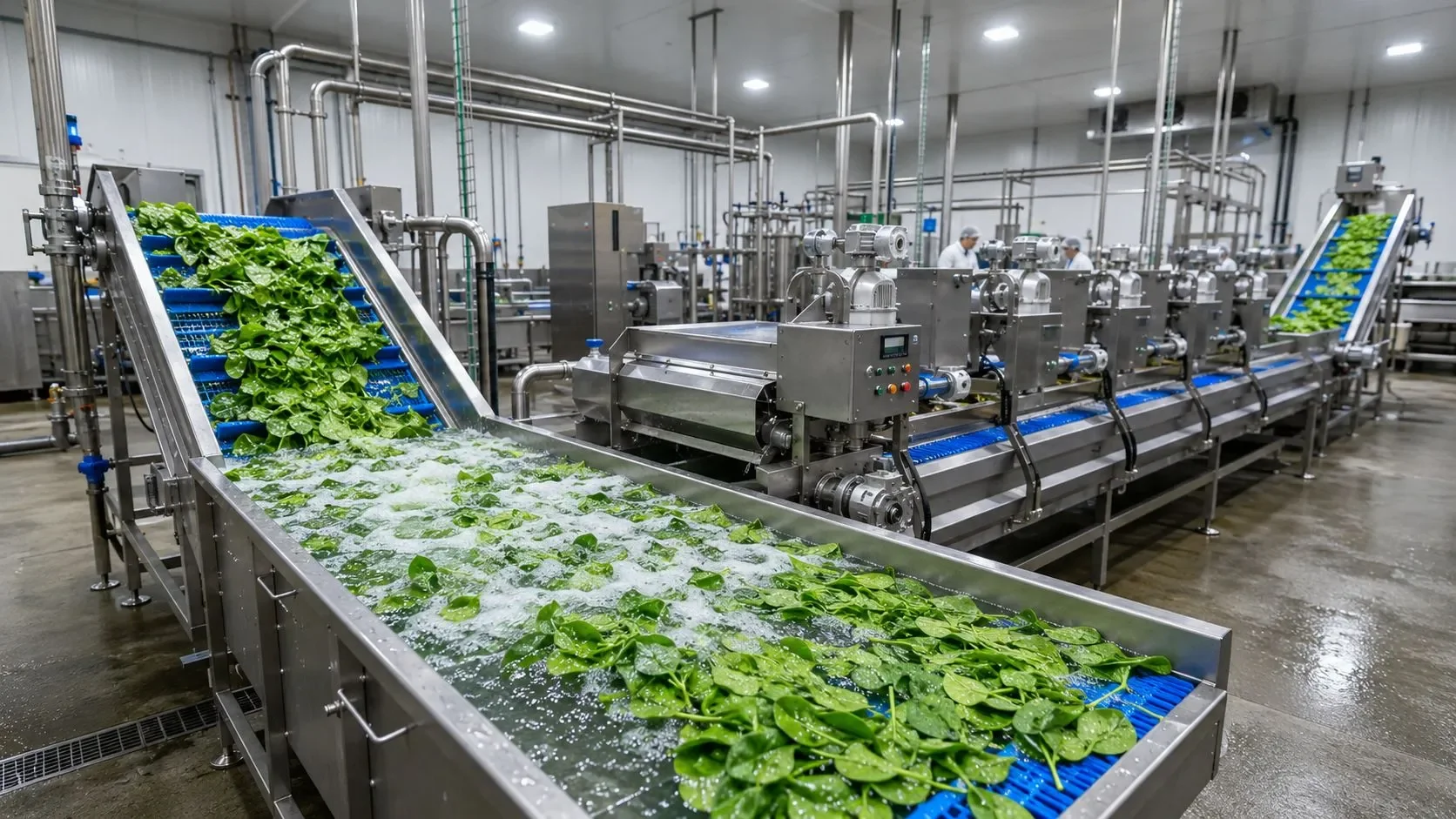

In a continuous vegetable washing line, the air dryer is positioned immediately after the washer to ensure uninterrupted workflow.
Comparison Summary: Which Should You Choose?
| Feature | Centrifugal Dewatering | Air Drying Machine |
|---|---|---|
| Operation Type | Batch processing (auto-tilt available) | Continuous processing |
| Water Removal | ≥95% (Aggressive mechanical force) | ≥90% (Non-contact air stripping) |
| Best Products | Leafy greens, cut vegetables | Delicate fruits, whole vegetables, packaged foods |
| Product Damage Risk | Low to Moderate (depends on RPM) | Zero (non-contact) |
| Footprint | Compact / Vertical | Large / Horizontal tunnel |
| Energy Consumption | Moderate (Motor drive) | High (Multiple blower fans) |
Can They Be Combined?
Yes. In demanding applications, combining both methods yields superior results. A processing line might use a short vibratory screen or low-speed centrifuge to shake off the heavy bulk water, followed by a warm air tunnel to ensure the surface is completely dry before IQF freezing.
Frequently Asked Questions
Will centrifugal drying crush my lettuce?
No, provided you use the correct settings. By adjusting the variable frequency drive to a lower RPM (e.g., 300-400 rpm) and keeping the cycle short, you can safely remove water without bruising delicate leafy greens.
Can air drying machines dry the inside of hollow vegetables?
Air knives are highly effective at stripping surface water. However, water trapped deep inside complex structures (like tightly layered cabbage or hollow peppers) is harder to reach. For those items, a centrifugal dryer is often more effective.
Does the air dryer use hot air?
Standard models use high-pressure room-temperature air to avoid heat damage to fresh produce. However, if your process requires it, Joyshine air dryers can be configured with an optional warm air system (up to 60°C).
How do I integrate these machines into my existing line?
Air dryers fit naturally over existing conveyor paths. For centrifugal dryers, Joyshine offers large industrial models equipped with automatic feeding conveyors and hydraulic auto-tilt discharge, bridging the gap between batch and continuous operations.
Build Your Efficient Drying System
Choosing the wrong drying method leads to waterlogged products, reduced freezer efficiency, and compromised quality. At Joyshine Machinery, we manufacture both centrifugal dewatering machines and continuous air drying tunnels, fully customized to your capacity (100 kg/h to 5,000+ kg/h).
Contact us today to discuss your raw materials and factory layout. Our engineers will help you select the exact surface water removal equipment to optimize your production line.
